Subsea Side Entry Ball Valve
Highlights
- Compact envelope
- Reliable performance
- Suitable to high pressure and high temperature
ATV designs and manufactures a full range of Side Entry Ball Valves, trunnion mounted, two pieces, for offshore subsea applications in the Oil & Gas exploration, production and transmission, suitable for water depths to 3000 m (10000 ft).
Side Entry Ball Valve offers the advantage of a compact envelope, reliable performance and a cost effective solution. Typically, soft-seated configuration is available for clean service whereas metal-to-metal sealing is the preferred choice for highest reliability in harsh service with the presence of solid particles, high pressure and high temperature. ATV supplies Ball Valves in a wide range of materials and configurations to meet any specific need of the application and customer’s requirements. Many optional features are available for seat designs, seat and stem seals, and end connections.
Materials are sourced from qualified suppliers on the base of specifications that reflect the industry standards (ASTM, NORSOK, BS, DIN or others), but do also incorporate additional requisitions resulting from long experience.
The subsea ball valves may be manually operated (by diver, if feasible) or fitted with hydraulic actuators, rack and pinion or helical spline design, with double acting or fail safe, with or without ROV override. Retrievable design is available in order to have the possibility to declutch the actuator and retrieve it to the surface or reposition it on another valve, without affecting the production line. ATV provides different proprietary design for ROV bucket or diver retrievability, while the interface for the landing tool will be made to the user’s design. ATV offers the highest level of performance and reliability being its actuators engineered to grant safety and extended operating life.
ATV designs, manufactures and tests its products in accordance with all the relevant Industry standards and codes (API, ANSI, ASME, BS, ISO, NACE, PED and others). ATV ball valves are manufactured to conform to API 6A and API 17D product specification level PSL 3/3G and pressure tested to either API 6A or API 6DSS requirement.
ATV stresses its willingness to produce engineered ball valves; therefore it welcomes requests for special size, class and design requirements.

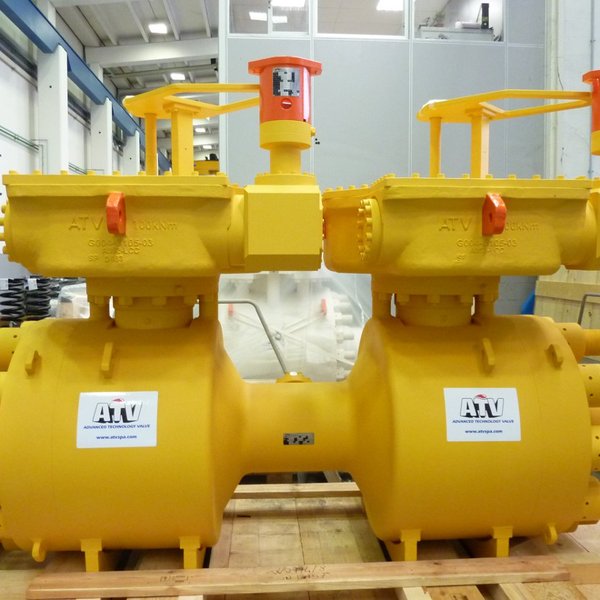

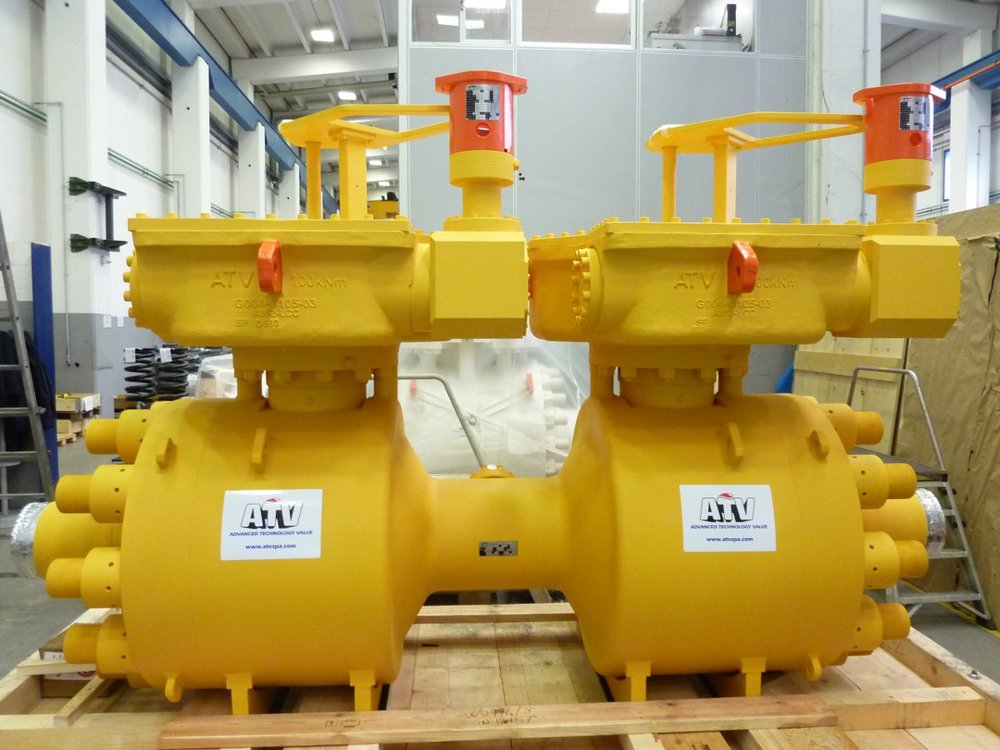

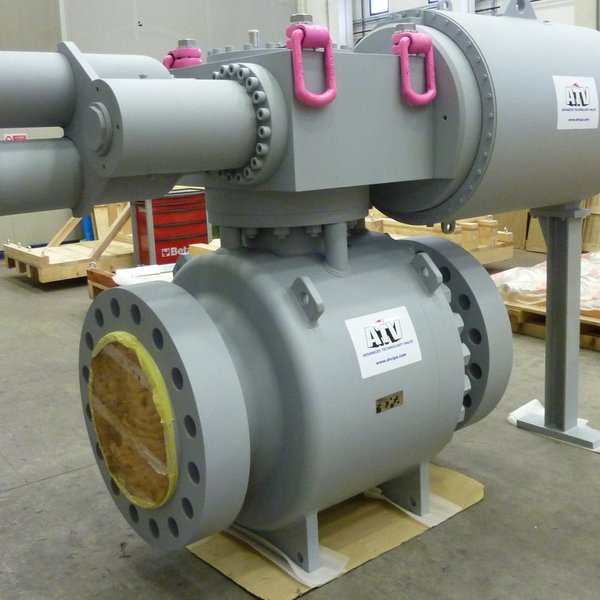

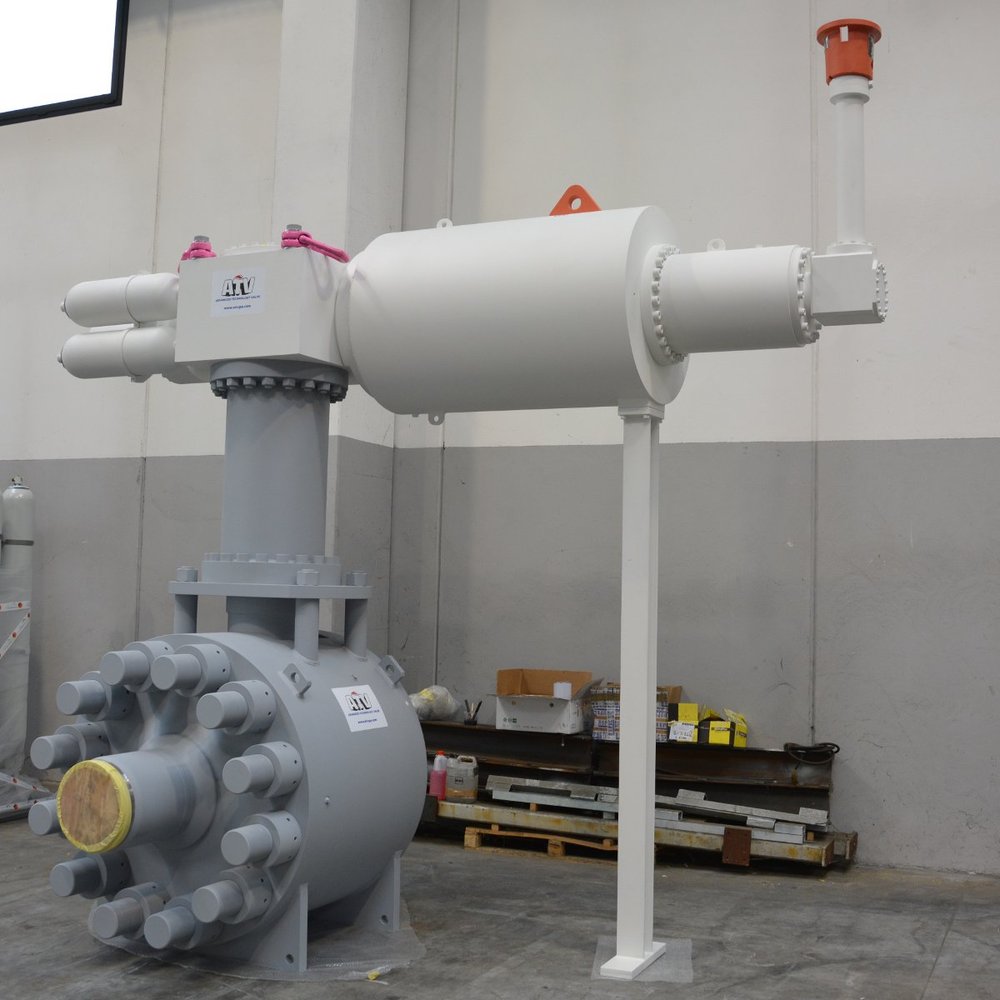

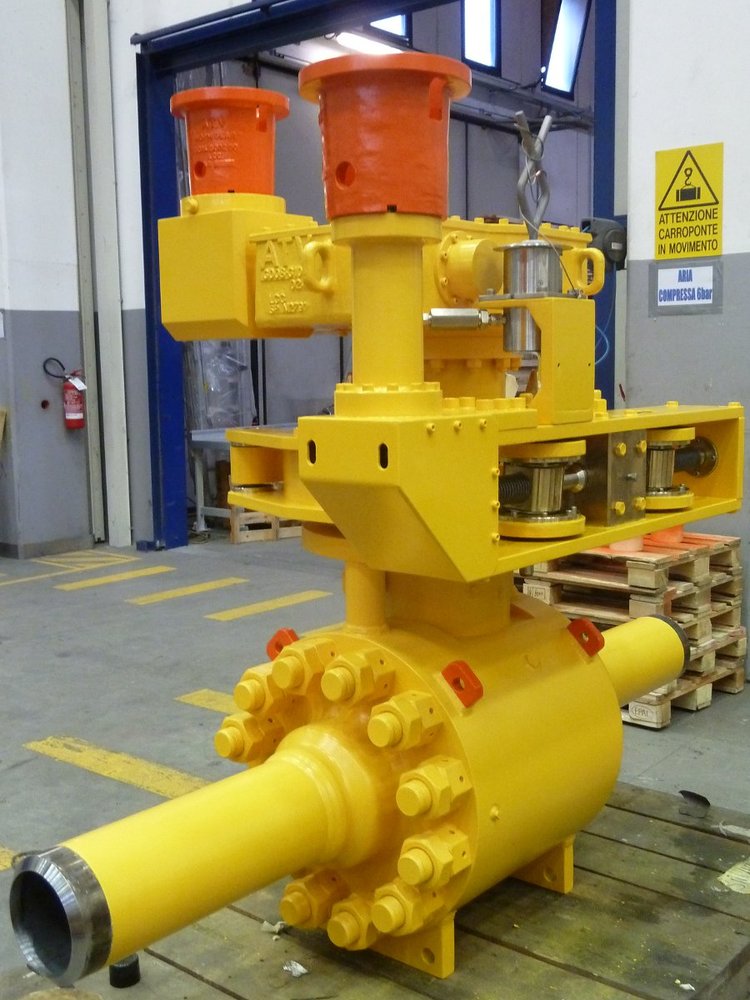

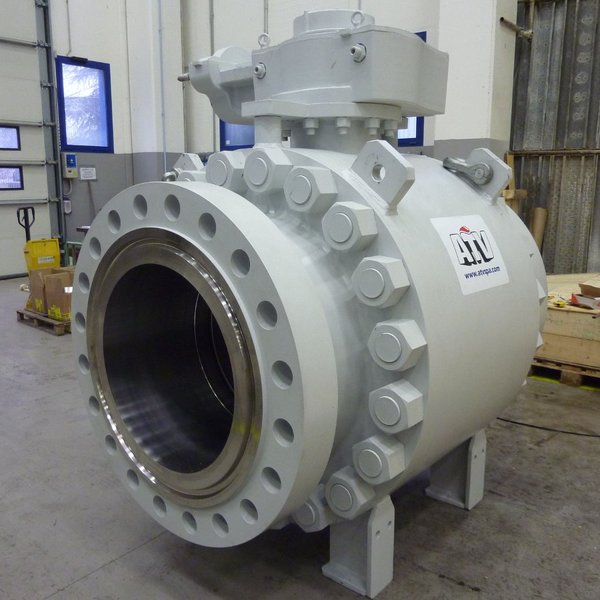

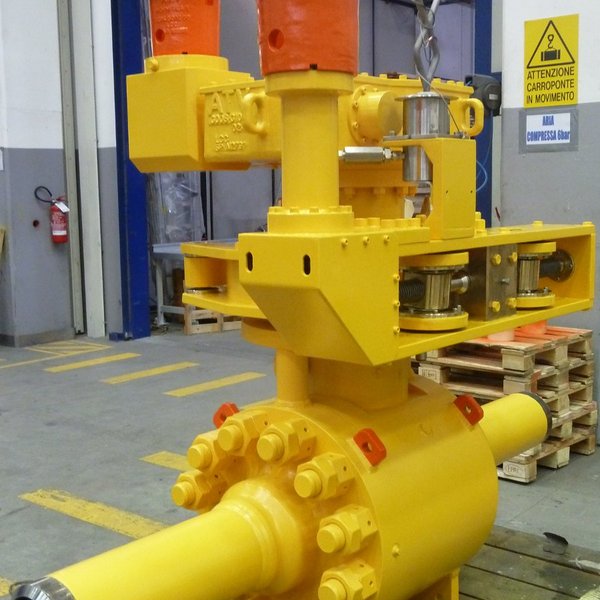

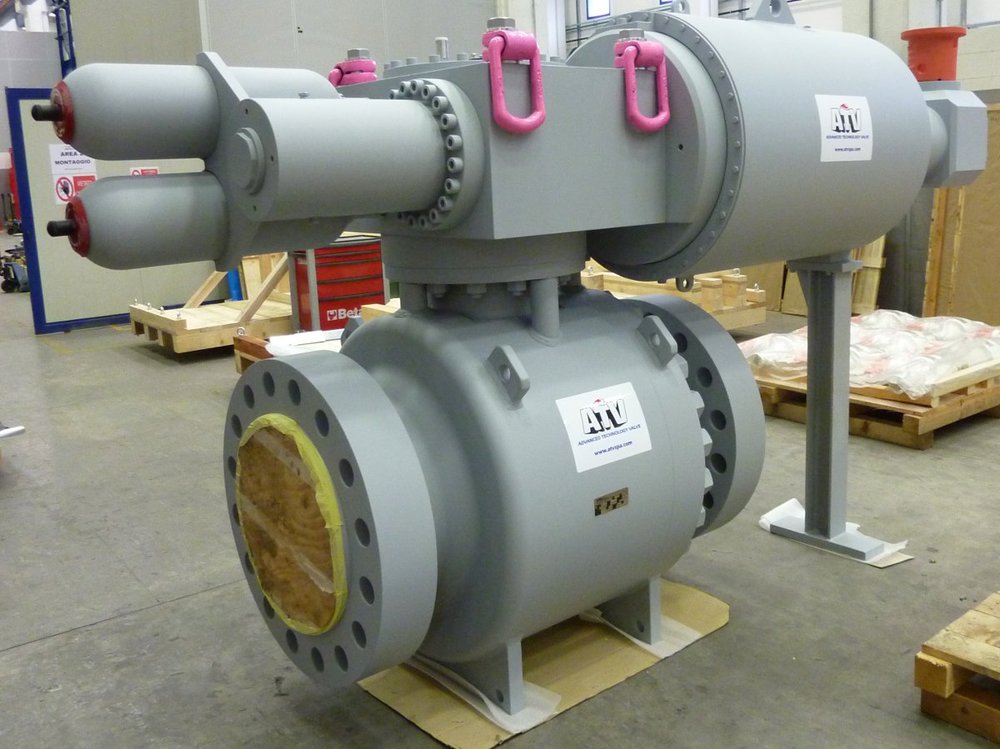

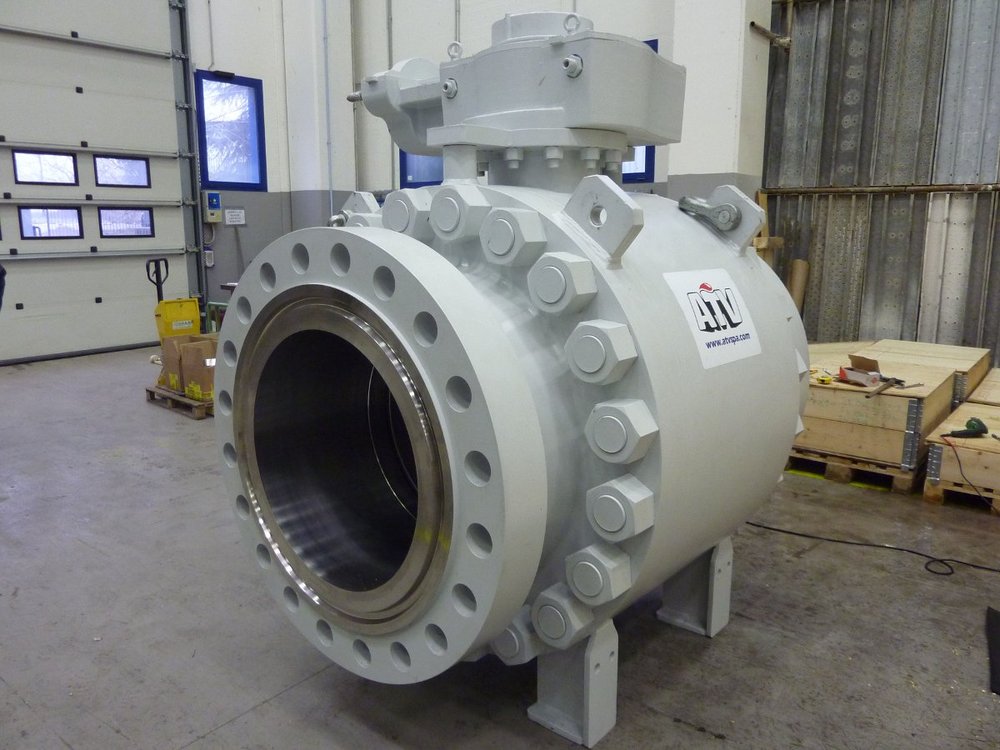

Images
Subsea Side Entry Ball Valve - Specifications
SPECIFICATION
| APPLICATIONS | Production manifold, flowline, Pipeline End Manifold (PLEM), Pipeline End Termination (PLET), Emergency Shut Down, Subsea Isolation, HIPPS, HPHT | Subsea Pipeline, Riser, Pipeline End Manifold (PLEM), Pipeline End Termination (PLET), HIPPS |
| STANDARD | API 6A, API 17D, ASME VIII Division I and II, NACE MR0175 and other diffused Industry standards | API 6DSS, ASME VIII Division 1 and 2, ASME B16.34, ASME B16.10, ASME B16.5, NACE MR0175 and other diffused Industry standards |
| RANGE | 1 13/16” ÷ 9”, Class API 3000 and 5000, 1 13/16” ÷ 7 1/16” Class API 10000, 1 13/16” ÷ 5 1/8” Class API 15000. Any other size upon application. | 2” ÷ 60” Class ANSI 600, 2” ÷ 48” Class ANSI 900, 2” ÷ 36” Class ANSI 1500, 2” ÷ 20” Class ANSI 2500. Larger sizes available on request. |
| WATER DEPTH | Up to 3000 m (10000 ft). Greater depth upon application. | Up to 3000 m (10000 ft). Greater depth upon application. |
MAIN FEATURES
| Forged body, two pieces | ||
| Bolted closure | ||
| Trunnion mounted | ||
| Full Bore | ||
| Piggable | ||
| Single Piston Effect (SPE) | ||
| Soft or Metal Seated | ||
| Wear resisting hardfacing on sealing surfaces | ||
| CRA overlay, full or partial | ||
| Qualification to API 6A Appendix F PR2 and API 17D | ||
| Double Block and Bleed (DBB) | ||
| Local position indicator |
ENDS
| Flanges (to API 6A) | ||
| Flanges (to ASME B16.5 up to 24” and B16.47A for 26” and larger) | ||
| Compact flanges (to Norsok L005) | ||
| Studded flanges | ||
| Buttwelded ends | ||
| Hub ends for clamped connections (as per customer requirement) |
MATERIALS
| Carbon steel | ||
| Low temperature carbon steel | ||
| Low alloy steel | ||
| High yield micro-alloyed steel | ||
| Duplex and Superduplex stainless steel | ||
| Nickel Alloy |
OPERATORS
| ROV operated gear | ||
| Quarter turn hydraulic actuator w/ or w/o ROV Override | ||
| Electric multiturn |
OPTIONS
| Reduced bore | ||
| Double Piston Effect (DPE) seats or mixed configuration (SPE/DPE) | ||
| Stem extension | ||
| ROV bucket extension | ||
| Local position indicator extension | ||
| Remote indicators (LVDTs and Limit switches) | ||
| Double Block and Bleed (DBB) | ||
| Retrievability of the actuator |
